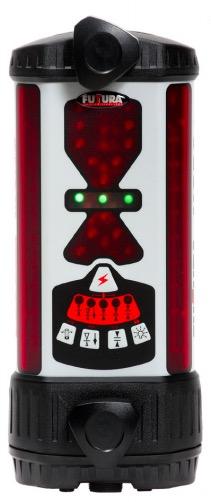

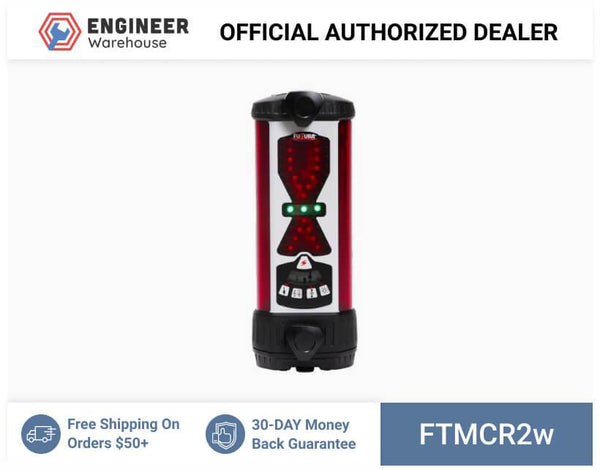

Futtura 6.75" Machine Control Laser Receiver - MCR2w

Brand: Futtura
WARRANTY: Backed by Terms of Manufacturer’s Official Warranty

Specifications

Dimensions 13.5” x 5.6” x 5.9” (LxWxD)
Weight (Shipping) 12 lbs (5.5 kg)
Mounting Pipe 42 mm to 50 mm (1.65 to 2”) O.D. round tube, 38 mm (1.5”) square tube
Operating Temperature -20° to 60° C (-4° to 140° F)
Laser Receiver Specifications
Vertical Reception 170 mm (6.75”)
Fine 5 mm (3/16”)
Standard 12 mm (1/2")
Wide 25 mm (1”)
Power Options Alkaline 4 x “C” cell or Nickel Metal Hydride “C” cell; power cable 10-30 VDC
Battery Life Alkaline Up to 60 hours
Battery Life NiMH Up to 45 hours
Quantity 1
Manufacturer Futtura
Model Number MCR2w

Futtura 6.75" Machine Control Laser Receiver - MCR2w

Brand: Futtura

Price:

Regular price $1,991.99 /each
Was Sale price $2,195.00
(Save 203.01 - 9%)
Alert: Sale Ending Soon
Size
6.75" Vertical Reception
$1,991.99
6.5" Vertical Reception
$1,604.99
8.75" Vertical Reception
$2,959.99
Shipping Will Be Calculated at Checkout
March Flash Sale - 5% OFF - Code: MAR5

PRODUCT HIGHLIGHTS:

  • Completely self-contained
  • 360° laser reception with proportional electronic valve output
  • Selectable accuracy
  • Built-in plumb and tilt indication
  • Wireless Bluetooth compatibility with RD25
  • Waterproof design
  • Heavy-duty construction
  • Magnetic or pole mounted
  • Low battery indicator and auto shut-off system
  • 75-minute automatic shut-off
  • Selectable bright/dim display
  • Selectable excavator offset grade display and dipper stick plumb indicator
  • 2-year warranty

Product Information

Ideal for grading, trenching, and excavating, the Futtura 6.75” Machine Control Laser Receiver MCR2w is sure to help obtain accurate measurements when using rotating lasers for surveying or construction-related tasks. It also includes a built-in plumb & tilt indication for easier use and positioning.

Machine Control Receivers, or MCRs, from Futtura are designed to adapt to any earth moving machine and work with rotating lasers. All receivers from Futtura’s products from its MCRw line are compatible enough to work with rotating lasers. For extra convenience, users can pair it with the RD25 Remote Display to connect wirelessly via bluetooth.

Let the laser provide a reference plane and mount the MCRw above the machine’s cutting edge of grading equipment, or on the dipper arm of excavation equipment. Initially, the receiver is set on-grade to a known preferred elevation or benchmark. As the machine works and the blade or bucket is moved, the user receives a visual indication on where to move the black or bucket to align on-grade by checking on the cab.

The Futtura 6.75” Machine Control Laser Receiver MCR2w is sure to obtain laser reference plans for easier and faster measurements over long distances of up to 6.75 feet. Purchase this product from Engineer Warehouse, an authorized distributors of Futtura products and more.

*Includes Nickel Metal Hydride rechargeable batteries

Specifications

Dimensions 13.5” x 5.6” x 5.9” (LxWxD)
Weight (Shipping) 12 lbs (5.5 kg)
Mounting Pipe 42 mm to 50 mm (1.65 to 2”) O.D. round tube, 38 mm (1.5”) square tube
Operating Temperature -20° to 60° C (-4° to 140° F)
Laser Receiver Specifications
Vertical Reception 170 mm (6.75”)
Fine 5 mm (3/16”)
Standard 12 mm (1/2")
Wide 25 mm (1”)
Power Options Alkaline 4 x “C” cell or Nickel Metal Hydride “C” cell; power cable 10-30 VDC
Battery Life Alkaline Up to 60 hours
Battery Life NiMH Up to 45 hours
Quantity 1
Manufacturer Futtura
Model Number MCR2w
WARRANTY: Backed by Terms of Manufacturer’s Official Warranty
Futtura
Covered by Full Futtura Warranty!
View all Futtura products
Official Factory Authorized Dealer
BUY WITH CONFIDENCE
Price Guarantee

See a better price? Send it to us and we’ll try to beat it!

Easy Product Returns

Don't Love Your Item? Send It Back Within 30 Days for a Full Money Back Guarantee

EXPERT SERVICE & SUPPORT

We’ll help You To choose The Right Product for you

WORLDWIDE SHIPPING

Email Us for a Quote - sales@engineerwarehouse.com
