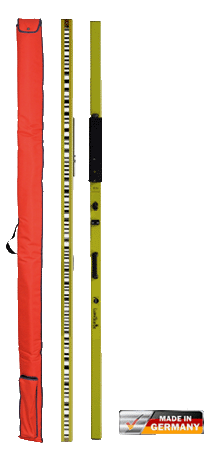

Nedo LumiScale w/ Leica Sprinter Bar Code - 340225-185

Specifications
Overall Dimensions | 87” x 3” x 2.5” / 2200 mm x 70 mm x 60.5 mm |
Illuminated Area Dimensions | 83” x 1” / 2125 mm x 25 mm |
Weight | 9 lbs |
Battery Type | Removable NiMH rechargeable batteries, 2000 mAh |
Battery Life | Approximately 5.5 h |
Staff Body Construction | Aluminum profile |
Graduation | Barcode |
Accuracy | ?l = ±(0.2 mm + 2l *10 -4 ) |
Protection Class | IP 54 |
Quantity | 1 |
Manufacturer | Nedo |
Model Number | 340225-185 |
Nedo LumiScale w/ Leica Sprinter Bar Code - 340225-185
Price:
Product Information
Nedo pushes the boundaries of grade rod technology one step even further. Introducing the LumiScale, Nedo’s self-illuminating leveling rod! This game-changing product is the ultimate solution to achieving accurate measurements at the most light-deprived places, such as tunnels and other underground worksites.
The grade rod’s self-illuminating capability is possible thanks to a specially developed electroluminescent foil that lights up the graduations from the back. Unlike external lighting, the Lumiscale’s back-lighting is perfectly even and reveals clearly readable barcodes. It also eliminates shadows, which dramatically decreases the chances of errors and allows the user to work more efficiently. Even the grade rod’s integrated bubble is also illuminated, allowing it to be easily set in perfect alignment.
The Nedo Lumiscale is also created for utmost precision. It is lined with high-readability graduations that comply with DIN 18703 standards. This ensures accurate measurements from tip to tip when using the rod. The Lumiscale is available in different barcode types including Trimble, DNA, RAB, Sokkia, and Leica.
The Nedo Lumiscale grade rod truly proves that practical challenges pave the way for the birth of innovations. When it comes to surveying equipment development, this 115-year industry leader is at its very forefront. This impressive product is definitely a stroke of genius that clearly demonstrates Nedo’s engineering mastery at its best.
*Includes bag, rechargeable batteries, and charger
Specifications
Overall Dimensions | 87” x 3” x 2.5” / 2200 mm x 70 mm x 60.5 mm |
Illuminated Area Dimensions | 83” x 1” / 2125 mm x 25 mm |
Weight | 9 lbs |
Battery Type | Removable NiMH rechargeable batteries, 2000 mAh |
Battery Life | Approximately 5.5 h |
Staff Body Construction | Aluminum profile |
Graduation | Barcode |
Accuracy | ?l = ±(0.2 mm + 2l *10 -4 ) |
Protection Class | IP 54 |
Quantity | 1 |
Manufacturer | Nedo |
Model Number | 340225-185 |
